Floor Chilled Water 50Hz Ceiling Fan Coil Unit

Product Categories
Taizhou MECO Refrigeration Equipment Co.,Ltd
Contact Now

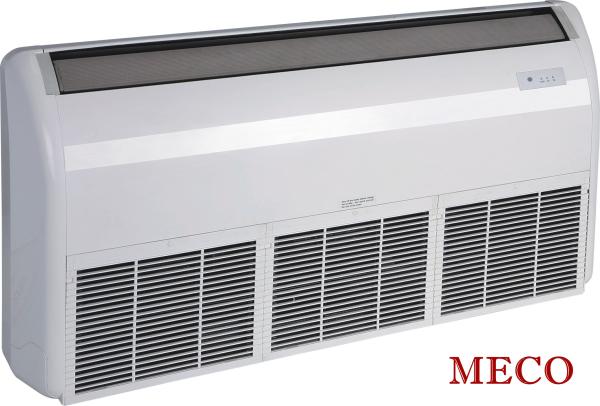

Floor Chilled Water 50Hz Ceiling Fan Coil Unit

Brand Name : MECO

Model Number : MFP-ZDM

Certification : CE

Place of Origin : China

MOQ : 10 unidades

Price : por confirmar

Payment Terms : T/T

Supply Ability : 10,000 unidades por mes

Delivery Time : 7-15 días

Packaging Details : por caja

Marca : MECO

Volumen del aire : 510~2380 CMH

Tipo : Piso Techo

Motor : CA o CC

OEM : disponible con su logo propio

Voltaje : 110v/220v

Frecuencia : 50Hz o 60Hz

Control : por remoto de standard

Opcional : la bomba incorporada / válvula / Modbus

Nivel de ruido : ≤ 51 dB(A)

Entrada/salida agua tubería : DN 20

Sistema : 2 tuberías / 4 tuberías

Pantalla digital : de temperatura

Aplicación : habitación, oficina, hospital, restaurante, escuela, etc

Contact Now

Features the patented design - MECO brand
✅ with AC motor
✅ Optional electric heating
✅ with the 2-pipe or 4-pipe system
✅ It is installed on the wall, on the ceiling, on the floor
✅ drainage by nature or by built-in pump

Floor Chilled Water 50Hz Ceiling Fan Coil Unit

CEILING FLOOR TYPE FAN COIL(2 TUBE SYSTEM)
model(2 tube system) MFP-51ZDM MFP-68ZDM MFP-85ZDM MFP-102ZDM MFP-136ZDM MFP-170ZDM MFP-204ZDM MFP-238ZDM
power supply 220V,50Hz,60Hz 　
air volume H m3/h 510 680 850 1020 1360 1700 2040 2380
M 380 515 660 765 1040 1280 1550 1800
L 260 340 430 530 710 860 1050 1280
static pressure Pa 0 0 0 0 0 0 0 0
cooling capacity TH H W 2700 3600 4500 5400 7200 9000 10800 12600
BTU/h 9212 12283 15354 18425 24566 30708 36850 42991
SH W 1990 2730 3174 4261 5385 6746 8109 9062
BTU/h 6790 9315 10830 14539 18374 23017 27668 30920
TH M W 2485 3030 3752 4467 6499 7926 9389 10605
W 1571 2015 2450 3071 4278 5447 6669 7262
SH L W 2078 2504 2950 3831 5660 7295 8619 8989
W 1212 1545 1844 2397 3317 4460 5300 5555
heating capacity H W 4050 5400 6750 8100 10800 13500 16200 18900
M W 2792 3970 4941 5740 7987 10557 13101 14011
L W 1788 2801 3533 3907 5464 7048 8714 9778
noise H 0Pa dB(A) 39 41 43 45 46 48 50 51
power input H 0Pa W 52 62 76 96 134 152 189 228
waterflow volume 　 m3/h 0.46 0.62 0.77 0.93 1.23 1.54 1.85 2.16
water pressure dropping kPa 11.8 13.6 21 23 25 32 33 38
dimension of water(in & out)connection pipe in ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
out ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4" ZG3/4"
coil type high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
dimension of water drain pipe mm ￠26 ￠26 ￠26 ￠26 ￠26 ￠26 ￠26 ￠26
unit dimennsion L×W×H mm 905*673*243 1288*673*243 1672*673*243
unit weight kg 26 28 30 38 40 42 45 45

Floor Chilled Water 50Hz Ceiling Fan Coil Unit

Floor Chilled Water 50Hz Ceiling Fan Coil Unit
